Pinion Gear Box

Product Overview

We manufacture a wide range of Pinion Gearboxes including Wobbler Head, Standard Pinion Gearboxes, Reduction Cum Pinion Gearboxes, and Pinchroll Pinion Gearboxes. These are designed for heavy-duty steel mill applications, ensuring durability, precision, and efficient power transmission.

Product Images

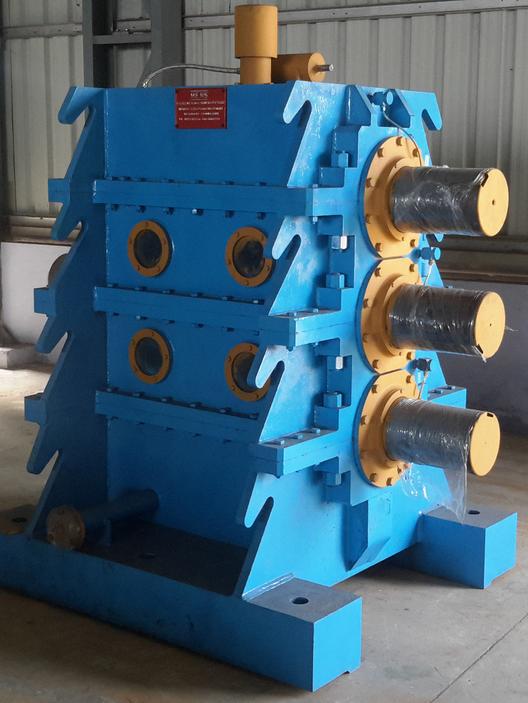

Pinion Gearbox (Wobbler Head)

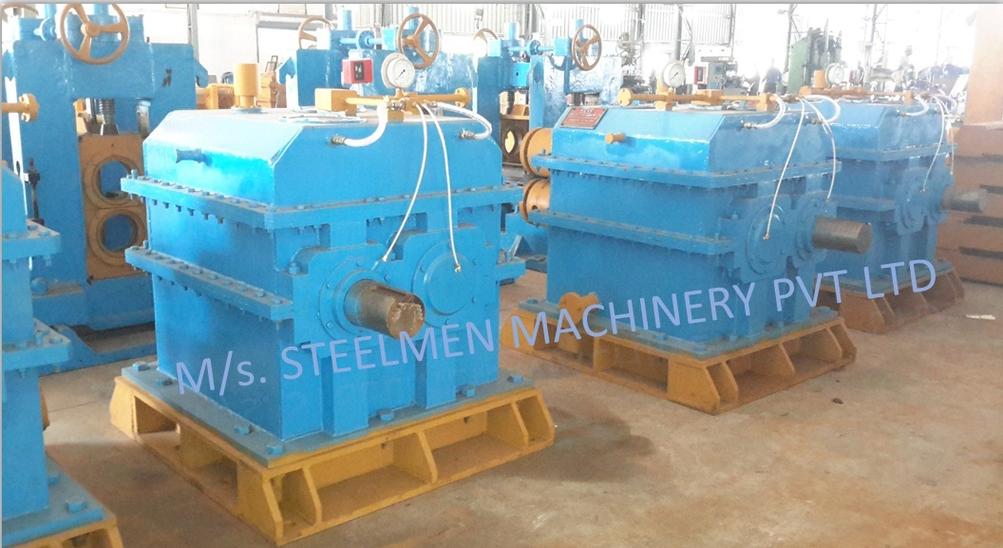

Pinion Gearbox

Reduction Cum Pinion Gearbox

Pinion Gearbox Assembly

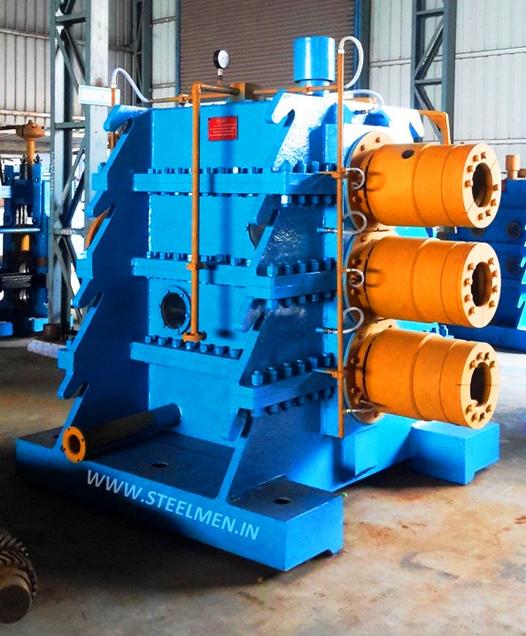

Pinchroll Pinion Gearbox

Key Features

• Pinions made of EN-9 integral or ring heat-treated from 230–260 BHN.
• Steel fabricated housing by M.I.G. welding, stress relieved in oil-fired furnace.
• Hydraulically fitted gear couplings on input & output shafts.
• Lubrication lines to bearings and spray lines to gears for efficient cooling.
• Bearings from ZKL / NACHI / KOYO JAPAN / NTN / SKF.
• Large inspection cover for easy maintenance and gear inspection.
• Horizontal split case design for ease of maintenance.
• Large diameter output shaft and bearings to maximize overhung load capacity.
• Robust and reliable construction minimizing backlash and friction.
• Innovative modular design with minimized part count for maximum availability.
