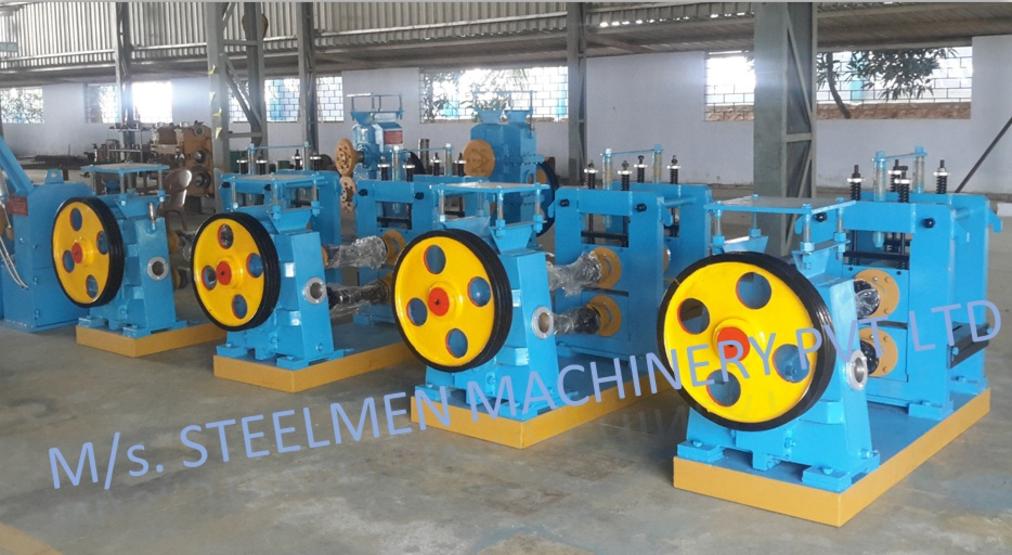

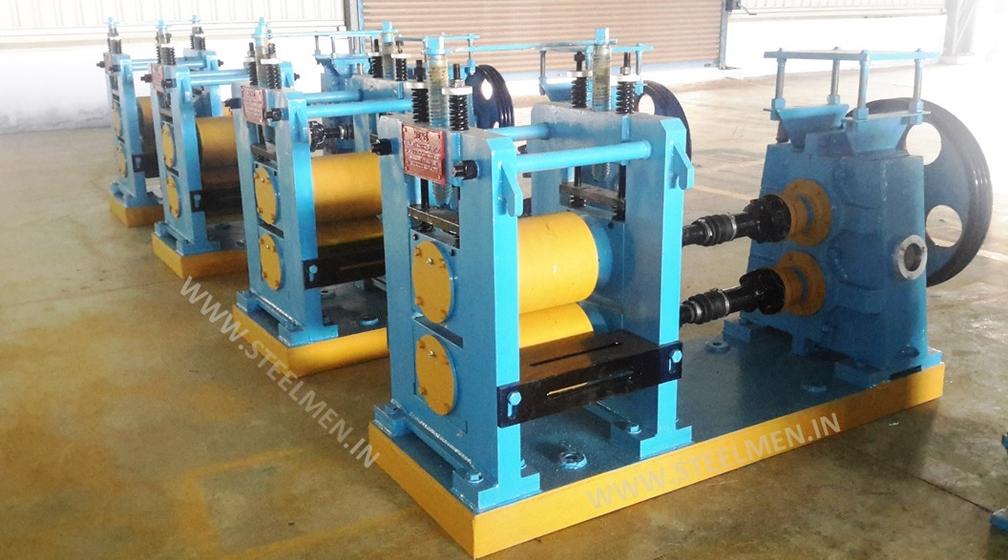

The Heavy Duty Pinch Roll is designed to push material towards a particular direction during rolling operations. It does not cause any physical change in the material but ensures smooth movement over a distance, improving efficiency and handling in steel mills.
| Type | Horizontal, top roll spring loaded |
| Roll Size | Ø250 mm dia. x 300 mm BL (for 30 mm Square) |
| Drive | By squirrel cage induction motor through V-belt, Pinion stand & Cardon shafts |
| Supply | Complete with Entry & Exit Guides |
| Motor | 25 HP / 960 RPM, mounted on structural frame |
