Steelmen | Oil Lubrication System

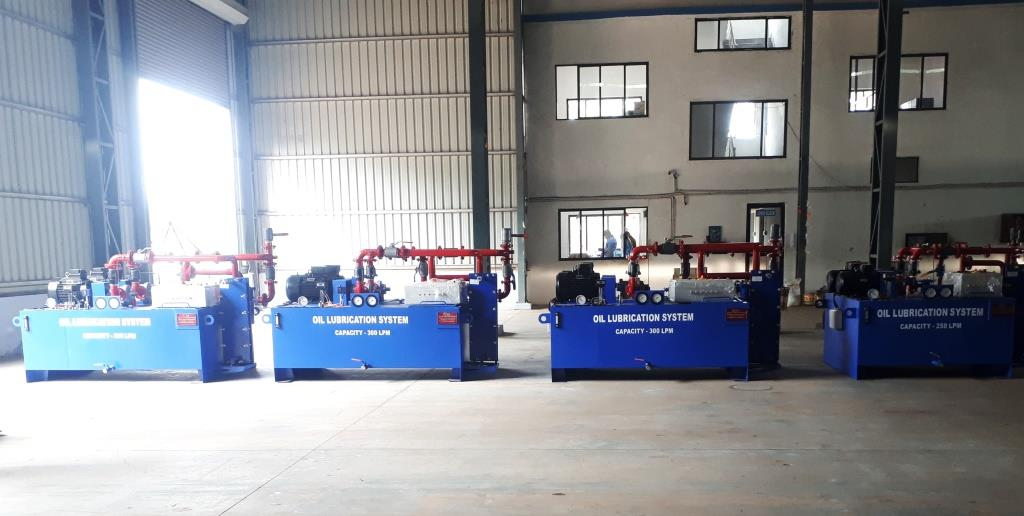

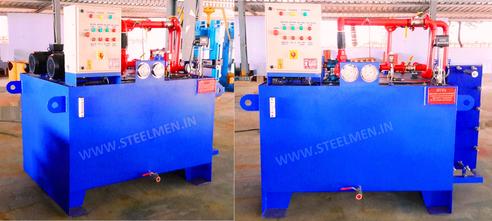

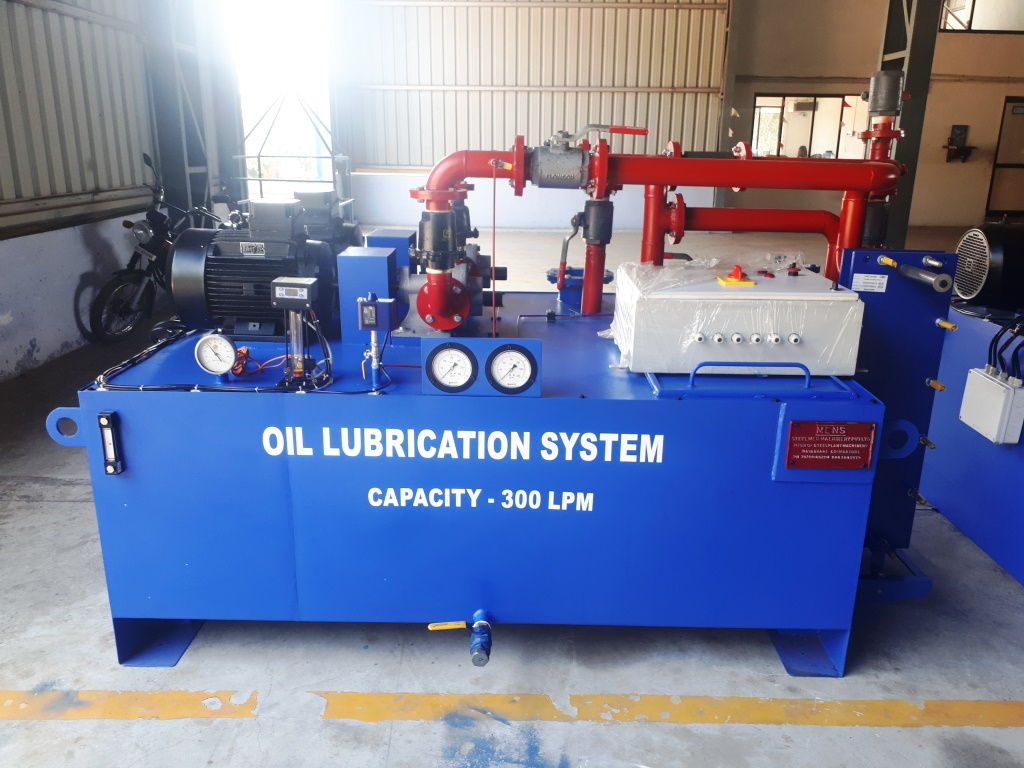

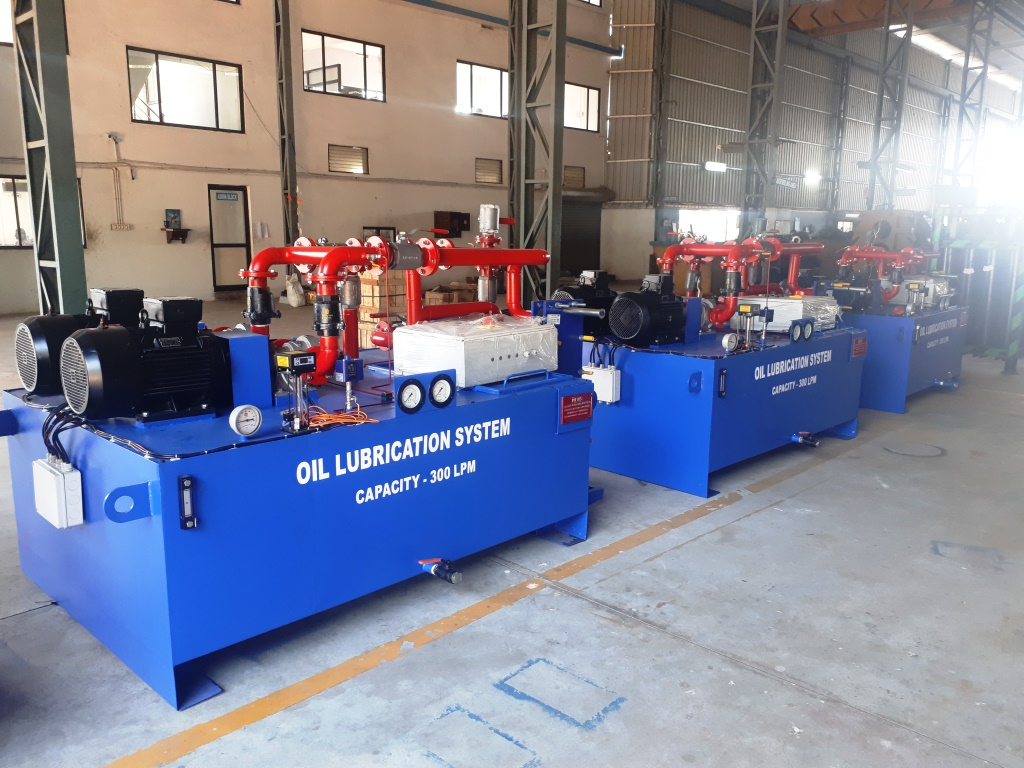

Oil Lubrication System

Capacity Range: 50 LPM to 300 LPM

Product Overview

The Oil Lubrication System is designed to serve mill reduction gearboxes and pinion gearbox housings with centralized lubrication. Each system includes its own reservoir, dual pumps (one running and one standby) with electrical motors, coarse and fine oil filters (strainers), plate or tube type heat exchangers for cooling, and piping to transport oil to gearbox nozzles and return by gravity flow. This ensures reliable lubrication, reduced wear, and efficient cooling during continuous steel mill operations.

Product Images

Variants

Additional Views

Videos of Oil Lubrication System (Capacity: 50 LPM to 300 LPM)



Key Features

  • Centralized lubrication system for mill reduction and pinion gearboxes.
  • Dual pump setup (one running, one standby) for reliability.
  • Integrated coarse and fine oil filters (strainers).
  • Plate or tube type heat exchanger for efficient cooling.
  • Gravity return flow for smooth oil circulation.
  • Available in capacities from 50 LPM to 300 LPM.
