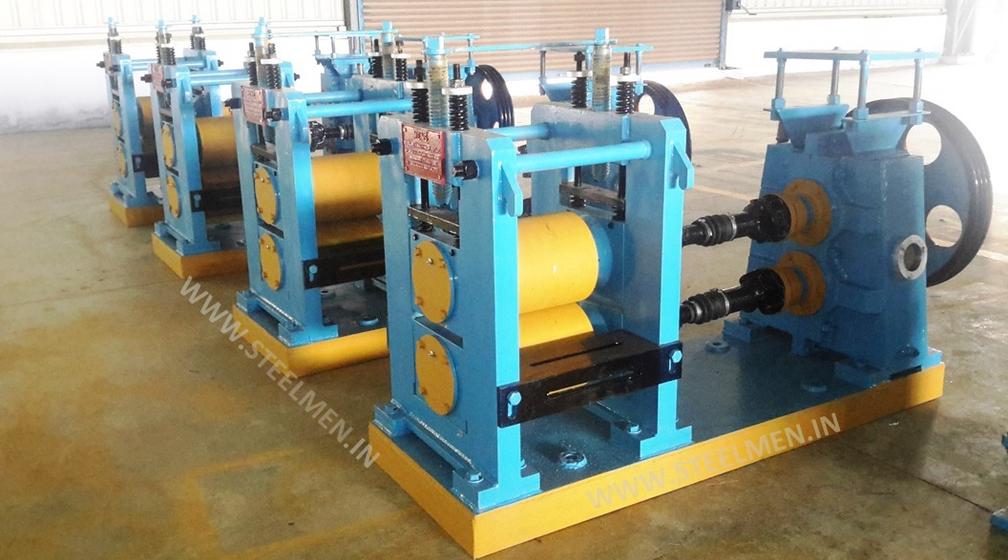

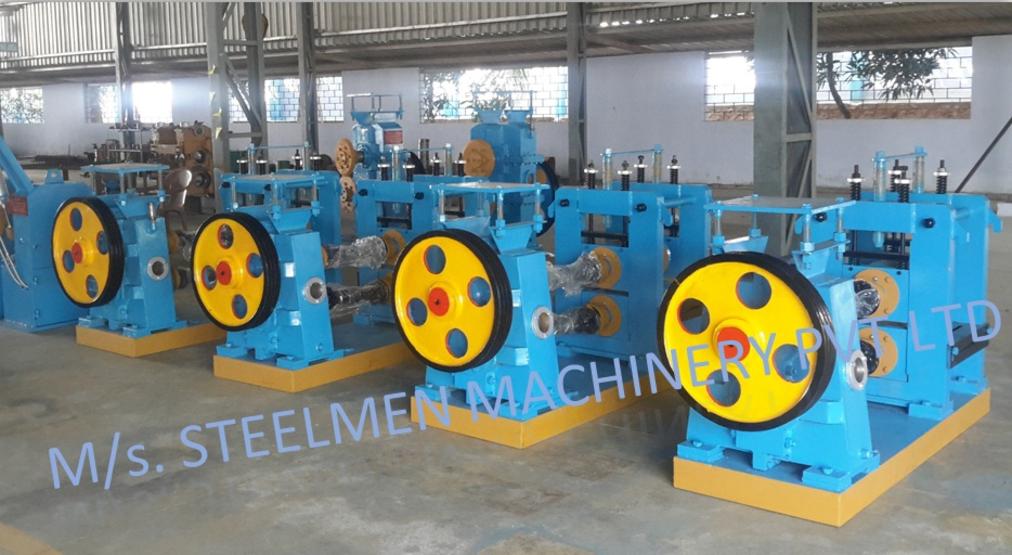

HEAVY DUTY PINCH ROLLS
The function of the Pinch Roll is to push the material towards a particular direction. It doesn’t cause any kind of physical change in the material and is used to move the material over a distance.
Type : Horizontal, top roll spring loaded.
Roll size : Ø250 mm dia. x 300 mm BL. (for 30 mm Square)
Drive : By squirrel cage Induction motor through `V' belt, Pinion stand & Cardon shafts.
Supply : Pinch Roll will be complete in all respect including Entry & Exit Guides.
Motor : 25 HP / 960 RPM. The unit will be mounted on structural frame.
